0729-1765-99(±25°,RS232)双轴倾角传感器

2022-08-11 283

规格书下载:点击下载

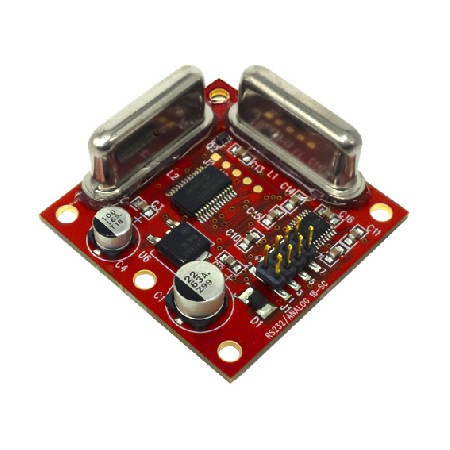

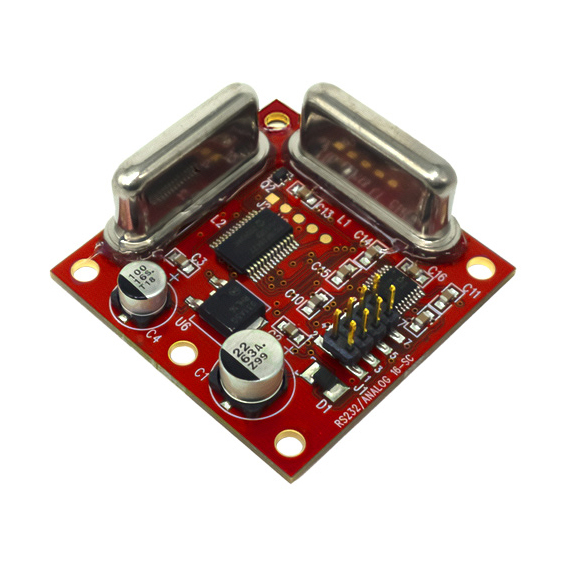

        The 0729-1765-99 analog and RS-232 inclinometer utilizes Fredericks 0703-1602-99 TrueTilt™ mid-range single axis electrolytic tilt sensors and the 1-6200-012 16 bit analog and RS-232 signal conditioner. The use of high accuracy single axis sensors and 16 bit ADCs and DACs make this inclinometer ideal for high precision tilt measurement. This inclinometer has superior tolerances and unit to unit performance with an economic design, making it an excellent solution for a versatile range of applications in many sectors.


技术指标:


类       型:双轴倾角传感器

量       程:±25°

精  确 度:≤1.0%

输       出:RS232

供电电源:7~16Vdc

电气连接:板载式

工作温度:-40℃~+85℃

特       点:低功耗,在极端温度和环境下的卓越性能

典型应用:高空升降平台调平监控、铁路监测、机器人控制、卫星天线对准、太阳能电池板位置和标高控制、车轮定位系统
