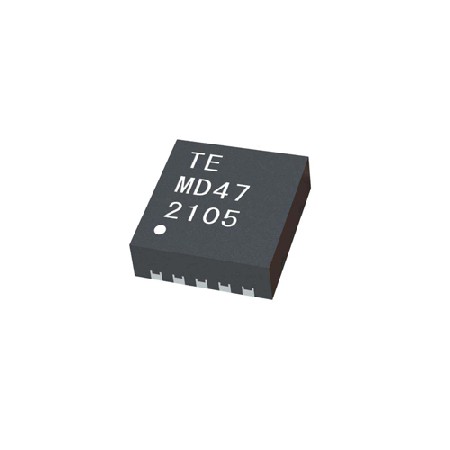

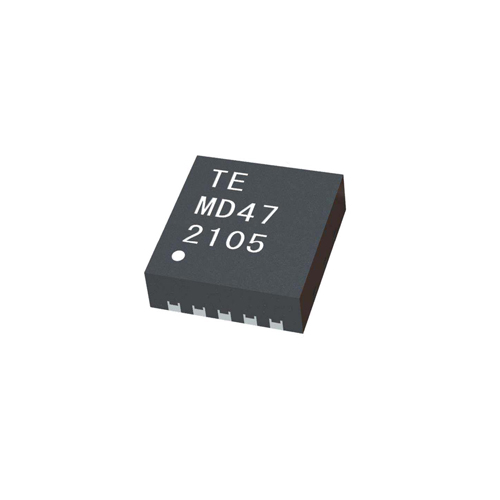

TE's MD47 digital sensor combines the sensitivity and precision of our MR sensor technology with our own advanced digital signalprocessing to create devices with unparalleled performance.

        The easy-to-use digital interface enables precise magnetic sensing with shorter development cycles than ever. The sensor component can be used for non-contact position sensing or as a simple magnet switch with an adjustable, temperature-independent switch point over a wide field range.

        The MD47 combines a unipolar MR sensing element with easy-to-use digital signal processing. The digital output provides magnetic field data as well as a calibration interface. The instrument is factory calibrated for temperature, and calibration coefficients are stored in internal non-volatile memory. All commands, data,and coefficients are contained in an elegant data structure that allows rapid commissioning with minimum firmware.

技术指标：

类        型：磁性线性位移传感器

磁  极  距：6mm

分  辨  率：24bit

输       出：SPI

供电电源：1.6~3.6V

电气连接：焊盘

工作温度：-45℃～125℃

特       点：高灵敏度，采样快速，可编程偏移和增益补偿

典型应用：非接触式位置检测，汽车，小行程气动气缸，工业
