产品说明：

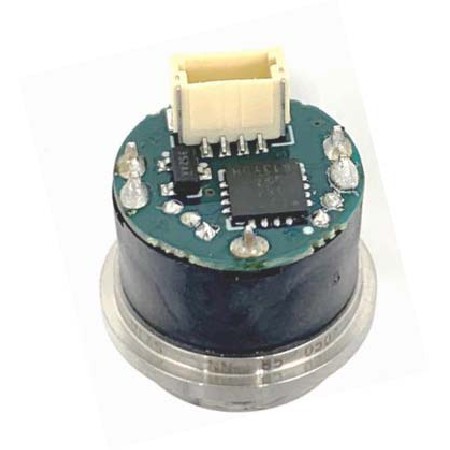

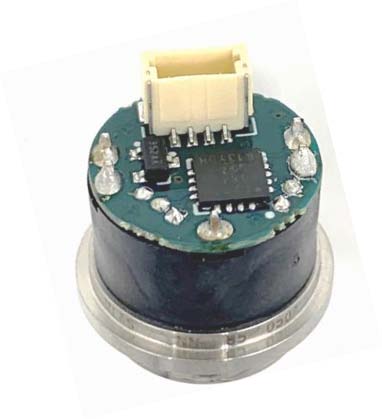

        This series of products is composed of a 316L stainless steel housing packaged ultra-stable piezoresistive silicon pressure sensor, a signal compensation PCBA which includes an ultra-low power 24bits ΔΣ ADC with internal factory calibrated coefficients and a MCU with TE self-developed computing program.

        It provides a precise digital pressure and temperature signal. A high-resolution temperature output allows the implementation of a pressure/ temperature function without any additional sensor.

        It also supports different operation modes that allow the user to optimize for conversion speed and current consumption.

        Each model was calibrated by ASIC and MCU in factory. it has been compensated offset, span, non-linearity of the measure pressure and temperature signal.

        TE provided the support to customize I2C communication protocol.

技术指标：

类       型：表压、绝压

量       程：1~500psi

精  确  度：±0.2%

输       出：I2C （24位）

供电电源：2.5～3.6VDC

电气连接：PCB焊接

工作温度：-20℃～85℃

特       点：低功耗，高精度焊接法兰或O型圈密封安装

典型应用：医疗设备，过程控制，压力变送器，液压控制，电子音量校正器（EVC），OEM设备
